Process Method: Cold Drawn / Cold Roll& Bright Annealed & Electro polished
TP304L, TP316L, TP316L-S2, EN 1.4301, EN 1.4404, EN 1.4435, other grades can be offered on request.
|( C ) Carbon – max||0.035||0.035||0.035|
Standards: ASTM A269, EN 10216-5 TC1
Outside diameter range from 6.35-50.8mm
Wall thickness range from 0.71-2.77mm
Inner surface roughness can be according to customers’ request and reach up to Ra<0.2μm
Selected Raw Materials：Our tubes are manufactured from specially selected mother pipes, controlled lower content of sulfur levels to promote reliable, consistent welding.

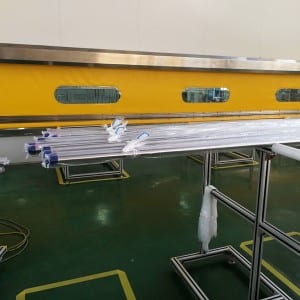

Chemically And Ultra High Purity/UHP Cleaned: Our tubes are chemically cleaned and passivated to keep nonvolatile residue levels to comply with ASTM G93 or SEMI E 49.6. UHP tubes &pipes are rinsed with 18MΩ cm2 DI hot water and purged with 99.9995% filtered nitrogen and are packed in an class 10 clean room.
Traceability and Clean Packaging: Each tube is marked to identify manufacturer, material type and heat code. BA&EP grade tubes & pipes are packed as following manner: ends are faced and protected with polyamide nylon film and polyethylene caps, packed in single (BA grade) or double (EP grade) polyethylene bags.

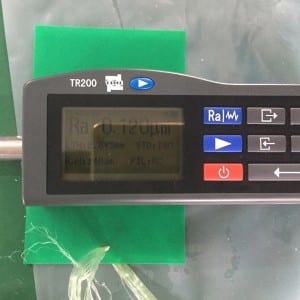

Professional Inspection Equipment: We have a variety of professional inspection equipment: Scanning Electron Microscope（SEM）,Energy Dispersive Spectroscopy（EDS）, Surface Roughness Gauge, Particle Counter, Micro Vickers, Moisture Analyzer, Metallographic Microscope, Tensile Testing Machine etc.
